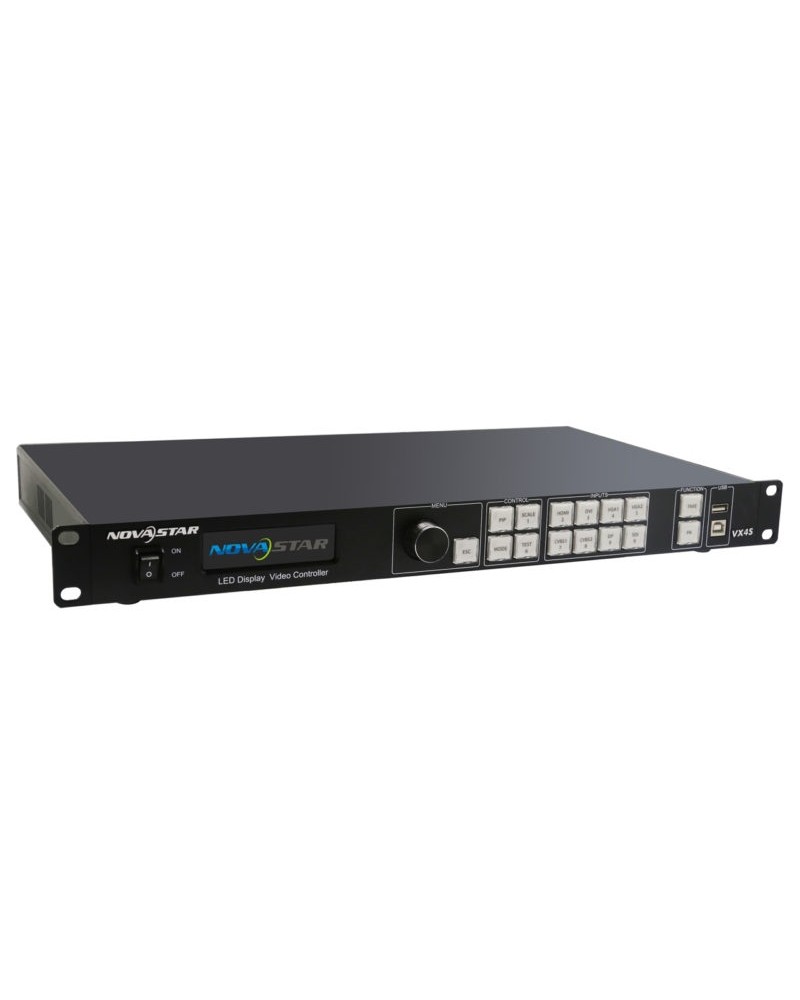

The VX4S is a professional LED display controller. Besides the function of display control, it also features in powerful front end processing, so an external scalar is no longer needed. With professional interfaces integrated, VX4S with excellent image quality and flexible image control greatly meet the needs of the broadcast industry, Its friendly in user-interface. so that the display to work has never been as easier and more enjoyable as with VX4S.
The VX4S is a professional LED display controller. Besides the function of display control, it also features in powerful front end processing, so an external scalar is no longer needed. With professional interfaces integrated, VX4S with excellent image quality and flexible image control greatly meet the needs of the broadcast industry, Its friendly in user-interface. so that the display to work has never been as easier and more enjoyable as with VX4S.
|
Input Index |
||
|
Port |
Number |
Resolution Specification |
|
CVBS |
2 |
PAL/NTSC |
|
VGA |
2 |
VESA Standard, support max. 1920×1200@60Hz input |
|
DVI |
1 |
VESA Standard (support 1080i input), support HDCP |
|
SDI |
1 |
480i、576i、720P、1080i/P |
|
HDMI |
1 |
EIA/CEA-861 standard, in accordance with HDMI-1.3 standard, support HDCP |
|
DP |
1 |
VESA Standard |
|
Output Index |
||
|
Port |
Number |
Resolution Specification |
|
DVI LOOP |
1 |
Consistent with DVI input |
|
VGA |
1 |
1280×1024@60Hz 1440×900@60Hz 1680×1050@60Hz 1600×1200@60Hz 1600×1200@60Hz – Reduced 1920×1080@60Hz 2560×816@60Hz 2048×640@60Hz 1920×1200@60Hz 2304×1152@60Hz 2048×1152@60Hz 1024×1280@60Hz 1536×1536@60Hz Self-defined output resolution (Bandwidth optimization) Horizontal resolution maximum 3840 pixels Vertical resolution maximum 1920 pixels |
